3.2 Ton Professional Excavator · Kubota V1505 · Cabin
PROFESSIONAL POWER.
DEEPER TRENCHES.
Read owner reviewsTERRAVAX R32 PRO Mini Excavator — 3.2 Ton
A full-size-feeling 3.2 ton digger for foundations, deep utility runs and heavy earthmoving. Four-cylinder Kubota diesel, enclosed cabin and a toothed bucket in the crate.
Sale ends in
Free shipping + tool box included while the timer runs.
- 3.2 ton operating weight
- Kubota V1505 4-cylinder diesel, 25 HP
- 27 kN max digging force
- 2,827 mm max digging depth
- 40 cm toothed bucket included
- 1-year warranty, U.S.-based support
Secure checkout · Cards, Apple Pay & Google Pay · Monthly payments available
Why it wins
Built to work, priced to own
Kubota V1505 Diesel
1.5 L four-cylinder, water-cooled, 25 HP at 2300 rpm. Smooth, thrifty and easy to get parts for.
27 kN Digging Force
Plenty of breakout for stumps, footings and hard, rocky ground.
2.83 m Digging Depth
Dig 2,827 mm deep and reach 4,831 mm out without constantly moving the machine.
Enclosed Cabin
Glass all round for visibility and shelter on long or wet days.
Heavy-Duty Undercarriage
300 mm tracks and low 36 kPa ground pressure stay planted on soft ground and 30% slopes.
Attachment Ready
40 L/min at 20 MPa runs breakers, augers, grapples and quick couplers.
In the field
Real work, real jobsites

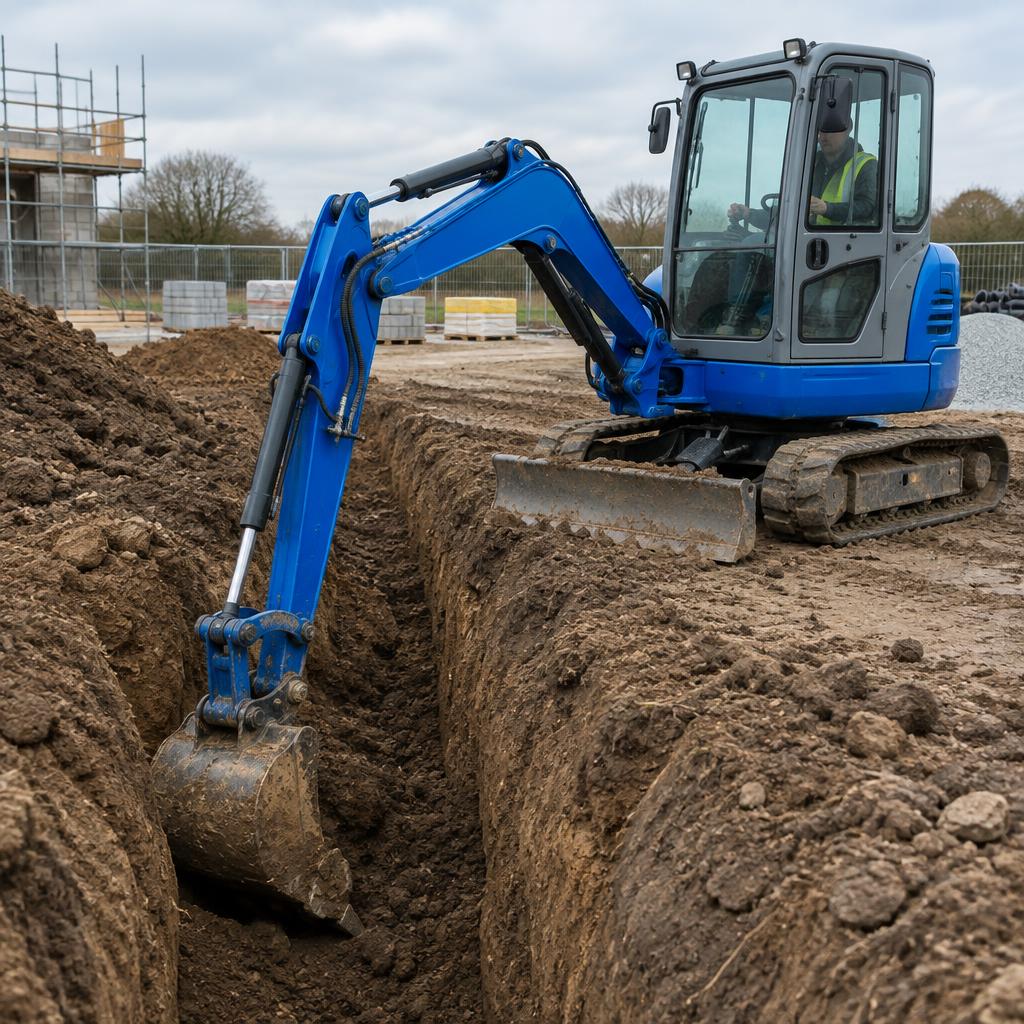

In the field

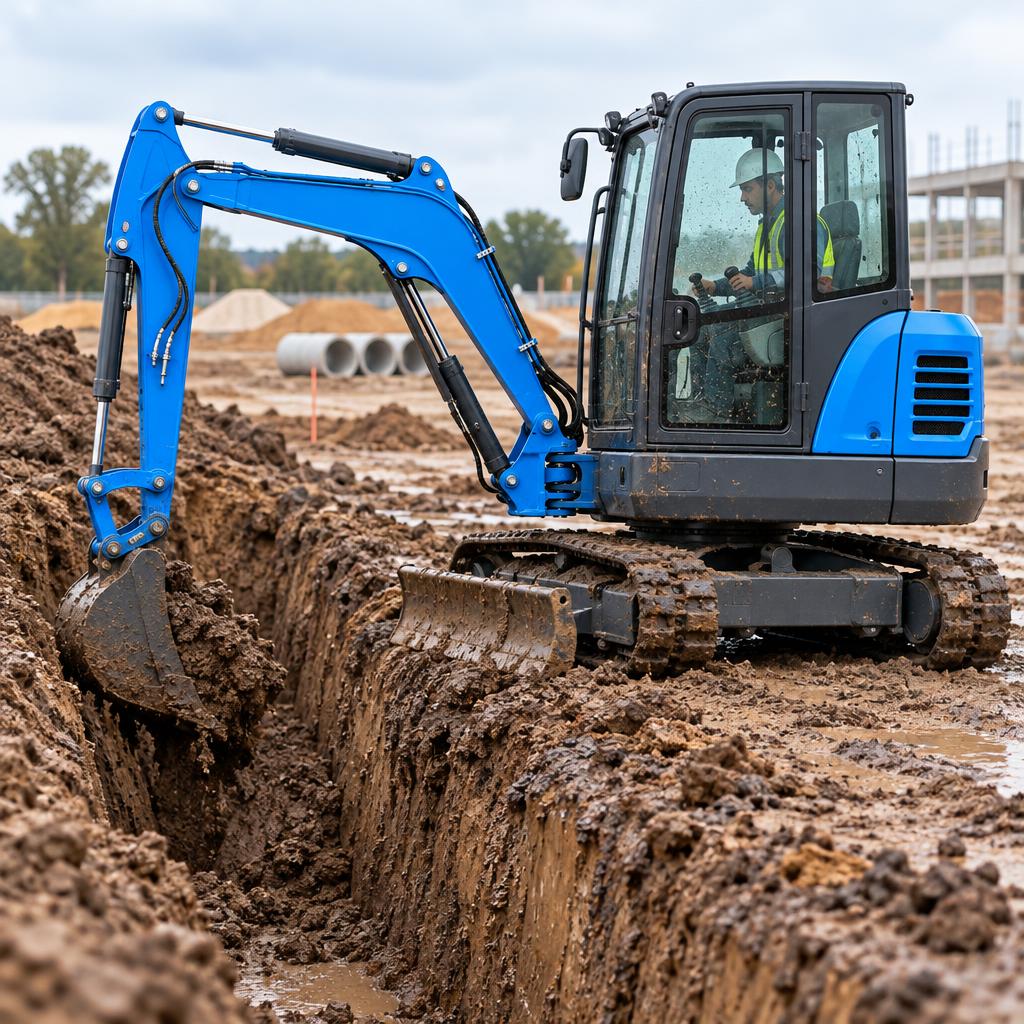

Deep trenches and footings
Utility lines, drainage and foundations that would stall a smaller machine.
Under the hood
Kubota power you can service anywhere
Filters and hoses are easy to reach, and any Kubota-friendly shop can help.
Delivered
Crated and shipped free
Strapped in a timber crate and delivered curbside in 5–10 business days across the continental U.S.
Specifications
- Operating Weight
- 3,200 kg (7,055 lb)
- Engine
- Kubota V1505, 4-cyl water-cooled diesel
- Rated Power
- 18.5 kW / 25 HP @ 2300 rpm
- Displacement
- 1.498 L
- Max Digging Force
- 27.0 kN
- Max Digging Depth
- 2,827 mm
- Max Digging Radius
- 4,831 mm
- Max Digging Height
- 3,181 mm
- Bucket Capacity
- 0.08 m³
- Bucket Width
- 650 mm
- Travel Speed
- 0–3.2 km/h
- Gradeability
- 30%
- Ground Pressure
- 36 kPa
- Transport Dimensions
- 3,200 × 1,500 × 2,500 mm
- Ground Clearance
- 480 mm
- Hydraulic Flow
- 40 L/min @ 20 MPa
- Track
- 300 × 100 mm × 42 links
- Fuel Use
- 2.0–2.2 L/h
- Warranty
- 1 Year
What's in the crate
- 1 × 40 cm toothed bucket
- 1 × tool kit
- 1 × digital manual
Shipping
Ships crated by freight in 5–10 business days. Free curbside delivery anywhere in the continental U.S.
What owners say
Honest feedback from people who put these machines to work — the praise and the caveats.
"Dug a full basement footing with it. Way more machine than I expected for the price."
"The cabin is a big deal in winter. Controls took a day to get used to."
"Arrived well crated. Kubota engine means my local shop can service it."
Pairs well with

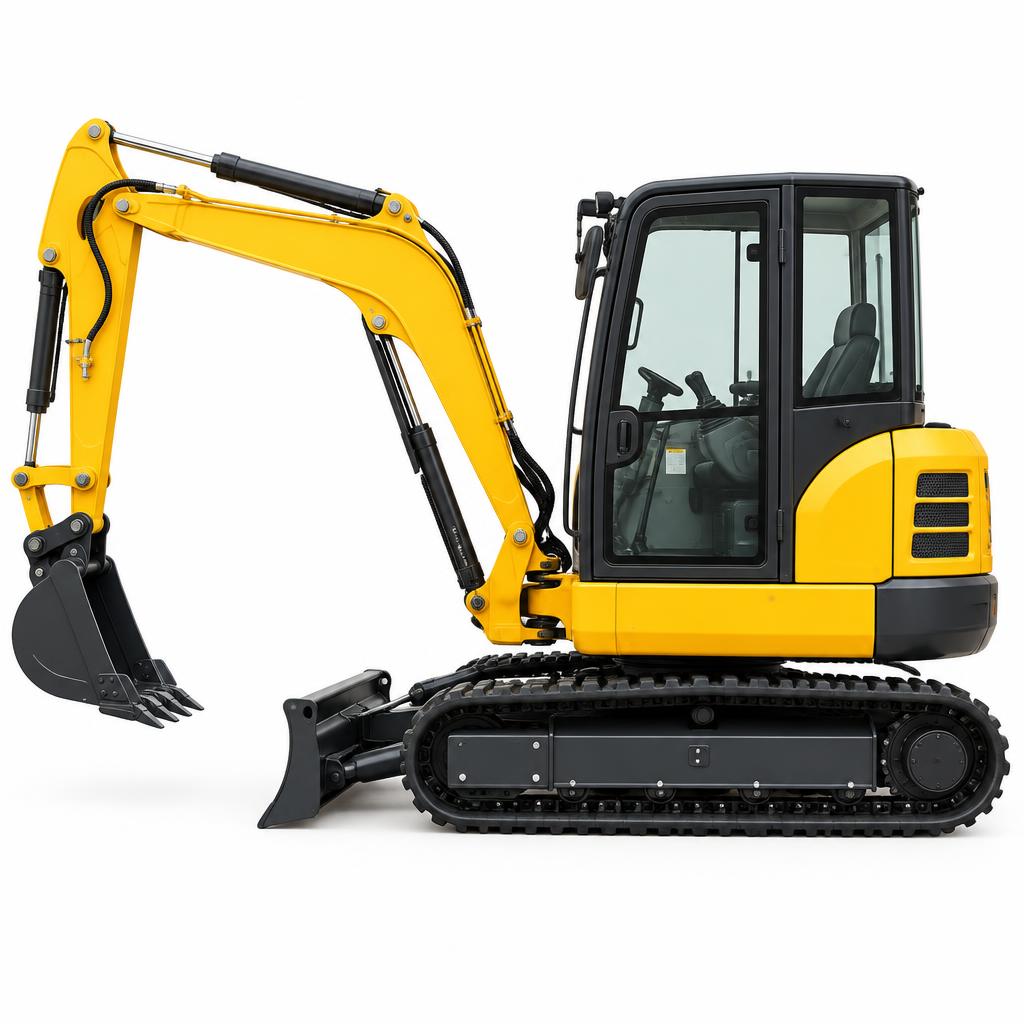

TERRAVAX NAGA 4.0 Mini Excavator — 4 Ton
Zero tail swing, Yanmar diesel and an air-conditioned cabin for tight urban jobs.
READY TO DIG DEEPER?
$3,900 today instead of $6,999. Free shipping, 1-year warranty and support that answers.
Buy now — $3,900Limited stock at this price. Secure, encrypted checkout.
